High-output, high accuracy loudspeakers for residential installed surround sound and distributed audio systems.

Sold as Each.

Each SR-28212ai v2 speaker requires 3x channels of Pro/Theory Amplification, not included.

-------------------------------------

Recommended LCR System,

3x Pro Audio Technology SCR-SR-28212ai v2 - 3-way tri-amped (Screen channel speakers).

1x Pro Audio Amplifier PLC9K4 (Front Left & 1x Sub)

1x Pro Audio Amplifier PLC9K4 (Centre & 1x Sub)

1x Pro Audio Amplifier PLC9K4 (Front Right & 1x Sub)

Recommended Sub/s

2x Pro Audio Technology - LFC18sm, 18" subwoofer

1x Pro Audio technology - LFC212ai, dual 12" subwoofer

-------------------------------------

Enquire about our Cinema and Media Room design services

MAXIMUM OUTPUT DOUBLE 12" TWO-WAY FULL-RANGE SCREEN or SURROUND LOUDSPEAKER

SPECIFICATIONS:

• APPLICATION: Surround sound / home theater / studio reference monitor / dance clubs / two-channel stereo

• LF SECTION: 2 x 12" professional grade subwoofers with 4" voice coils

• MF SECTION: 2 x 8” midrange drivers with 2.5 inch voice coils

• HF SECTION: 1.75" professional-grade compression driver on PRO Theorem wide dispersion Axi- symmetric waveguide

• CROSSOVER: 8th order acoustic via DSP

• POWER HANDLING: 2800W LF / 1000W MF / 120W HF

• SENSITIVITY: 102dB LF / 106dB MF / 108dB HF

• POWER REQUIREMENTS: Tri-amplification via PRO Amplified Loudspeaker Controller

• WIRING REQUIREMENTS: 6 conductors

• FREQUENCY RANGE: 22Hz – 22kHz, -6dB

• MAXIMUM OUTPUT: 131dB

• NOMINAL IMPEDANCE: 4-ohms LF / 4-ohms MF / 16-ohms HF (SR-28212ai v2) or 8-ohms HF (SR-28212ai-40)

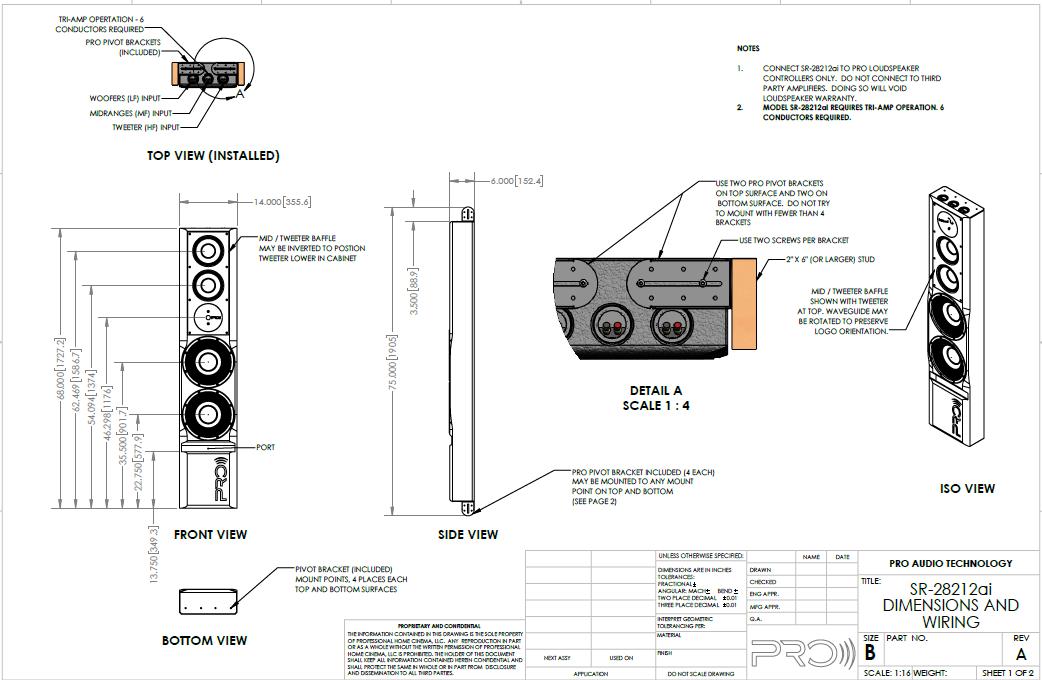

• DIMENSIONS: 68" H x 14" W x 6" D

• WEIGHT: 117 lbs.


LINK to Pro Audio Product Page - https://www.proaudiotechnology.com/sr28212ai
