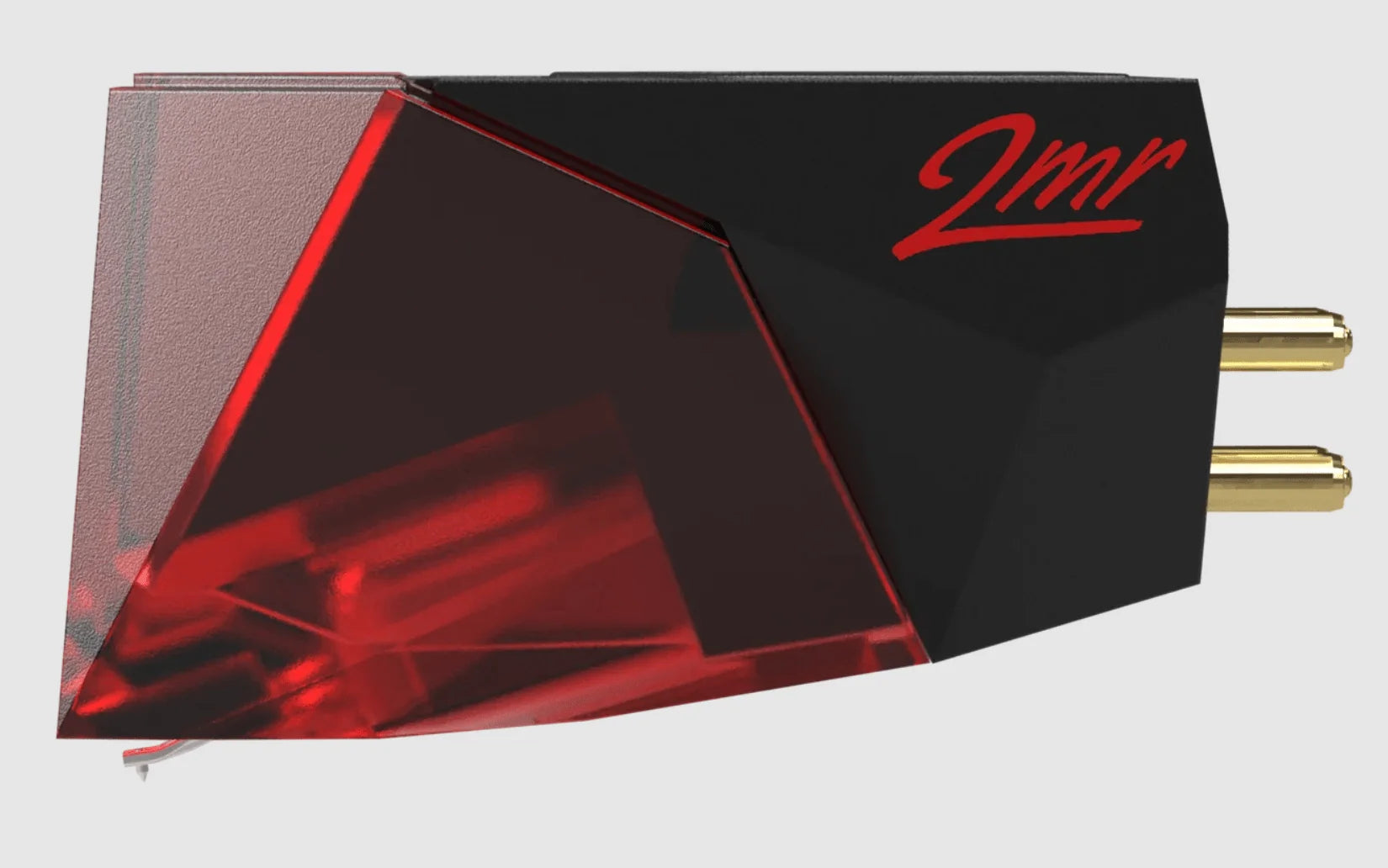

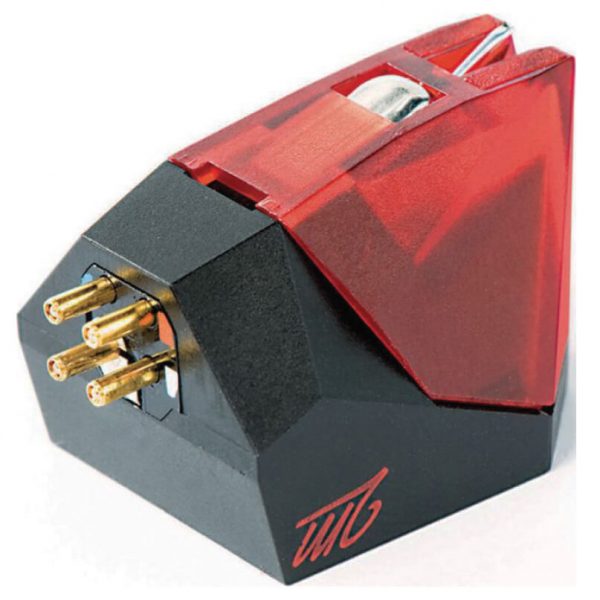

Ortofon 2M red moving magnet cartridge

$179.00
$179.00
Vision Living is an Authorized Reseller

2M Red

With the 2M Red you will hear the music come to life on its own terms. It is like taking a step into the music itself. The 2M Red delivers an open, dynamic sound with a slight touch of warmth. This is our entry-level cartridge in the series, but what an entry.

Specifications

  • Channel balance at 1 kHz
    1.5 dB
  • Output voltage at 1 kHz, 5cm/sec
    5.5 mV
  • Channel separation at 1 kHz
    22 dB
  • Frequency response 20 Hz - 20 kHz
    + 3 / - 1 dB
  • Tracking ability at 315 Hz
    70 µm
  • Compliance, dynamic, lateral
    20 µm/mN
  • Cantilever material
    Aluminium
  • Stylus type
    Elliptical
  • Stylus tip radius
    r/R 8/18 µm
  • Coil system
    Quad-coils with split pole pins and OFC Coil wire
  • Tracking force range
    1.6-2.0 g (16-20 mN)
  • Tracking force, recommended
    1.8 g (18 mN)
  • Tracking angle
    20°
