ortofon

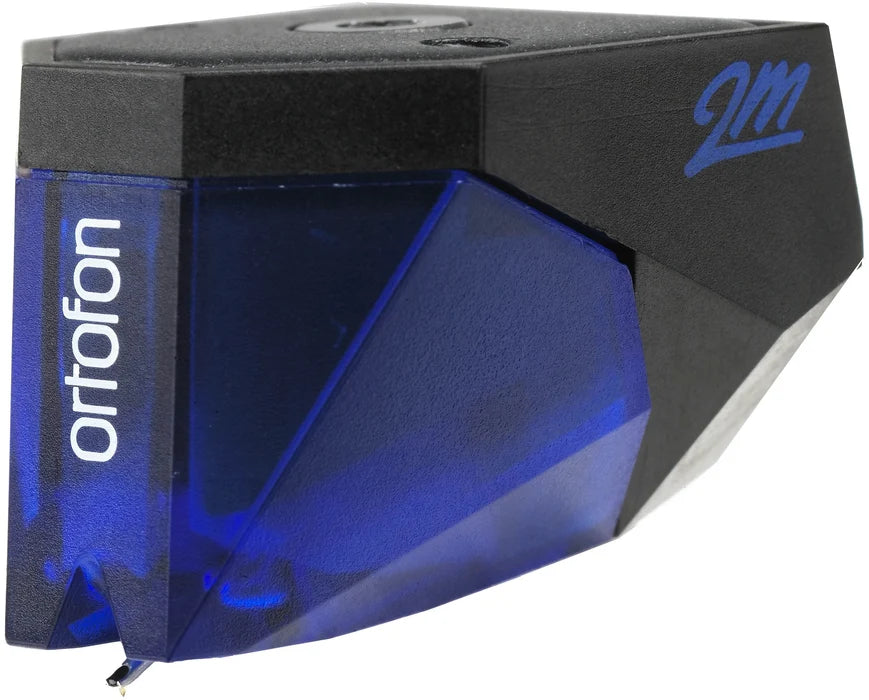

Ortofon 2M blue moving magnet cartridge

$359.00
$359.00
Vision Living is an Authorized Reseller

2M Blue

The goal for any cartridge should be to reproduce the sound as close to the artist's vision as possible, and the 2M blue takes you further on this journey of authenticity. With the 2M Blue, you get serious about listening to vinyl.

Specifications

  • Channel balance at 1 kHz
    1.5 dB
  • Output voltage at 1 kHz, 5cm/sec
    5.5 mV
  • Channel separation at 1 kHz
    25 dB
  • Frequency response 20 Hz - 20 kHz
    20-20.000 Hz + 2 / - 1 dB
  • Tracking ability at 315 Hz
    80 µm
  • Compliance, dynamic, lateral
    20 µm/mN
  • Cantilever material
    Aluminium
  • Stylus type
    Nude Elliptical
  • Stylus tip radius
    r/R 8/18 µm
  • Coil system
    Quad-coils with split pole pins and OFC Coil wire
  • Tracking force range
    1.6-2.0 g (16-20 mN)
  • Tracking force, recommended
    1.8 g (18 mN)
  • Tracking angle
    20°
  • Internal impedance, DC resistance
    1.3 kOhm
  • Coil wire material
    OFC Wire
  • Cartridge body material
    Polymer and aluminum
  • Cartridge colour
    Black/Blue
  • Cartridge weight
    7.2 g
  • Premounted cartridge weight
    16.7 g
  • Recommended load resistance
    47 kOhm
  • Internal inductance
    700 mH
  • Stylus colour
    Blue
  • Recommended load capacitance
    150-300 pF
