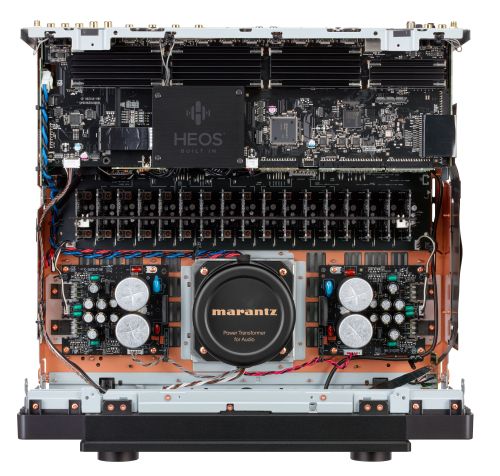

Reference 13.4 Channel Balanced Processor with Dolby Atmos, DTS:X Pro, Auro-3D, IMAX Enhanced and 8K Ultra HD, and HEOS® Built-In streaming. AV 20 is a reference-level AV processor.
AV Preamplifier
- Detailed and immersive sound transforms your home theatre
- 4-channel output allows a variety of speaker layouts such as 7.4.6
- Decodes Dolby Atmos, DTS:X, IMAX Enhanced audio and AURO-3D
- Acoustic room tuning with Audyssey MultEQ XT32 and optional Dirac Live
- Seven HDMI inputs (all 8K) and three outputs for highest resolution video
- Sound Master tuned for warm, rich and detailed Marantz sound
- High-quality HD on-screen interface makes setup intuitive
- Balanced and RCA outputs for external power amplifiers
- Elegant design matches beautiful sound
- Optimised HDAM-SA3 for fast response and low distortion
Technical Specifications
|
Audyssey |
MultEQ XT32 |
|
Network |
|
|
Wi-Fi / Bluetooth / Ethernet |
Yes / Yes / Yes |
|
HEOS Multi-Room and Streaming |
Yes |
|
Bluetooth Retransmit for Bluetooth Headphones |
Yes |
|
Lossy Formats |
MP3, WMA, AAC |
|
Lossless Formats |
FLAC, FLAC HD 192/24, ALAC, ALAC 192/24, WAV, WAV 192/24 |
|
DSD Audio Streaming |
Yes (2.8/5.6 MHz) |
|
Gapless Playback |
FLAC, ALAC, WAV, DSD |
|
TuneIn / AirPlay 2 / Spotify |
Yes / Yes / Yes |
|
Roon Ready |
Yes |
|
Other Streaming Services |
Amazon Music / TIDAL / Deezer / Napster / Soundcloud |
|
Compatible with Remote App for Smartphones |
Marantz AVR Remote |
|
Compatible with Remote App for Tablets |
Android / iOS / Amazon Kindle |
|
HDMI |
|
|
Total HDMI Inputs |
7 (rear) |
|
HDCP 2.3 Support |
Yes |
|
HDMI Outputs: Main / Zone |
2 / 1 |
|
HDMI Upscaling |
1080p/4K to 8K |
|
GUI Overlay on HDMI |
Yes |
|
HDMI 2.1: 8K/60Hz AB / 4K/120Hz AB |
Yes / Yes |
|
8K/60Hz AB / 4K/120Hz AB Pass-Through In/Out |
7 / 2 (up to 40 Gbps) |
|
HDR / HLG / Dolby Vision / HDR10+ / Dynamic HDR |
Yes / Yes / Yes / Yes / Yes |
|
Enhanced ARC |
Yes |
|
ALLM (Auto Low Latency Mode) Pass-Through for Gaming |
Yes |
|
Variable Refresh Rate / Quick Frame Transport |
Yes / Yes |
|
HDMI Pass-Though in Standby Mode |
Yes |
|
DSD Audio Capability |
Yes |
|
Auto LipSync |
Yes |
|
Inputs/Outputs |
|
|
|
|
Video |
Composite In / Out |
|
2 / 0 |
|
|
Component In / Out |
|
1 / 0 |
|
|
HDMI In / Out |
|
7 / 3 |
|
|
Multi-Room Video Out: Video / HDMI |
No / Yes |
|
|
Audio |
Analogue In |
|
7 (1× XLR) |
|
|
Phono (MM) In |
|
Yes |
|
|
Digital In: Optical / Coaxial |
|
2 / 2 |
|
|
Multi-Room Out: Analog / Digital |
2 / 0 |
|
|
|
Multichannel Pre-Amp Out |
Yes (15.4 RCA, 15.4 XLR) |
|
|
|
Subwoofer Out |
|
4 (independent) RCA, XLR |
|
Other |
Speaker A / B |
|
Assignable Pre-Out |
|
|
Bi-Amp Drive |
|
Assignable Pre-Out |
|
|
Front USB Input / USB Audio |
Yes / Yes |
|
|
|
USB Power Supply (Rear) |
|
Yes |
|
Multi-Room |
|
|
|
|
Multi-Room Zones |
|
|
3 |
|
Zone Audio Source: HDMI / Opt, Coax / Network, USB / Analogue |
Yes (2 ch) / Yes (2 ch) / Yes / Yes |
||
|
Zone Audio Output: Speaker / Pre-Out |
|
No / Yes |
|
|
Zone HDMI Output from HDMI Source |
|
Yes |
|
|
IP Control / RS232 Control / Web Control / App Control |
Yes / Yes / Yes / Yes |
||
|
IR Flasher In / Marantz Remote Bus |
|
Yes / Yes |
|
|
DC Trigger Output |
|
|
3 |
|
HDMI Diagnostics |
|
|
Yes |
|
HEOS Multi-Room Integrated |
|
Yes |
|
|
Others |
|
|
|
|
Auto Speaker Setup by Microphone |
|
Audyssey MultEQ XT32 Dirac Live (Upgrade) |
|
|
Front Display |
|
|
2-Line FLD, Port Hole OLED |
|
Graphic User Interface |
|
Modern HD GUI |
|
|
GUI Languages |
|
|
9 |
|
Setup Assistant / Smart Select |
|
Yes / Yes |
|
|
Firmware Update by Network / USB |
|
Yes / Yes |
|
|
Variable Cross Over / Optimised Bass Redirection / Bass Sync |
Yes / Yes / Yes |
||
|
Auto Power Off / Sleep Timer |
|
Yes / Yes |
|
|
General |
|
|
|
|
Metal Front Panel |
|
|
Yes |
|
System Remote Control |
|
RC051SR |
|
|
Backlit |
|
|
Yes |
|
Power Consumption |
|
|
90 W |
|
Standby Consumption |
|
0.2 W |
|
|
CEC Standby Consumption |
|
0.5 W |
|
|
Network Standby Consumption |
|
<2.0 W |
|
|
Maximum Dimensions |
Antenna, Horizontal: (W × D × H) Antenna, Vertical: (W × D × H) w/o Antenna: (W × D × H) |
442 x 457 x 191 mm 442 x 457 x 254 mm 442 x 437 x 191 mm |
|
|
Weight |
|
15.0 kg |
|
|
What's in the Box |
|
Main unit, remote control, batteries, wire labels, quick start guide, Audyssey microphone, card board microphone stand, 2 External Detachable Antenna, AC cord |
|
|
EAN |
|
747192145736 |
|
