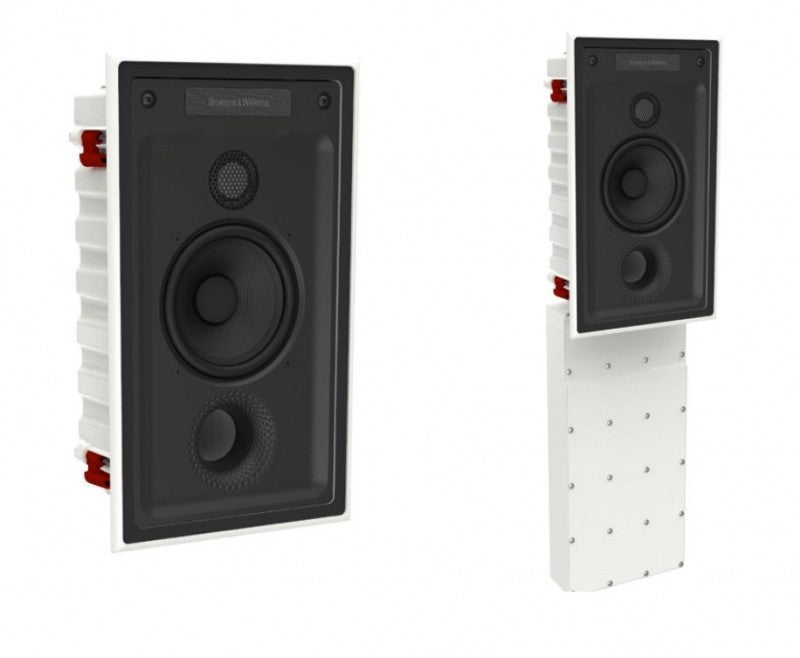

Bowers & Wilkins CCM7.5 S2 In-Wall Speakers

-- See nothing, hear everything --

The CWM7.5 S2 share the acoustic configuration of the 707 S2 and like its sibling, it houses a 130mm (5in) bass/mid-range Continuum cone driver plus a 25mm (1in) Carbon Dome tweeter, coupled to a B&W trademarked forward-firing Flowport for outstanding bass response from a relatively small footprint. It has a critically formed baffle constructed from glass reinforced ABS plus its own integrated and expandable back-box, ensuring retro-fittable installation plus optimum performance. It's an outstanding performer when using in stereo or multi-room installations, and is equally at home as the rear speaker in a larger theater application.

Technical Specifications

Technical features:
Carbon Dome tweeter, Continuum mid/bass, Flowport.

Description:
2-Way In-Wall System

Drive units:
1x 25mm (1 in) Carbon Dome high-frequency
1x 130mm (5 in) Continuum cone mid/bass

Frequency range -6dB:
-6dB at 43Hz - 33kHz

Frequency Response -3dB:
45Hz - 28kHz (+/-3dB)

Sensitivity:
86dB spl (2.83Vrms, 1m)

Harmonic distortion:
2nd and 3rd harmonics (90dB, 1m)
<1% 90Hz - 33kHz
<0.5% 120Hz - 33kHz

Nominal impedance:
8ohm (minimum 3.8ohm)

Recommended amplifier power:
25W - 150W into 8ohm on unclipped program

Dimensions:
Frame height: 356mm (14in)
Frame width: 212mm (8.5in)
Depth behind surface: 102mm (4in)
Cut-out height: 331mm (13in)
Cut-out height w/PMK: 336mm (13.2in)
Cut-out width: 187mm (7.4in)
Cut-out width w/PMK: 192mm (7.6in)
Protrusion: 8mm (0.3in)
Reservoir Box height: 385mm (15.2in)
Reservoir Box width: 181mm (7.1in)
Net weight 3.8kg
Grille Finish: White
