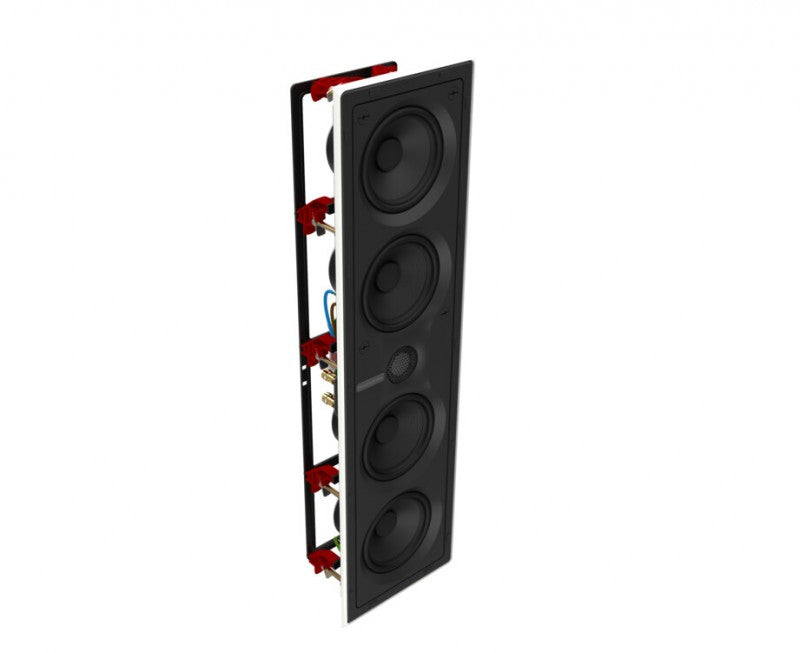

Bowers & Wilkins CCM7.4 S2 In-Wall Speakers

-- See nothing, hear everything --

Bowers & Wilkins CCM7.4 S2 In-Wall Speakers - Left, Center, Right.
Locate these around your display as part of an excellent home theatre solution.

Designed for wall-mounted left, center and right speaker positions in a discreet home cinema system, CWM7.4 S2 ensures crystal-clear dialogue and dramatic special effects.

Unique to Bowers & Wilkins the trademark QuickDogs fixing method ensures simple and quick installation requiring tools only to cut the mounting hole.

Its 2.5-way configuration features a single Carbon Dome tweeter, twin 100mm (4in) Continuum cone mid-range units and twin 100mm (4in) Aramid Fibre/paperbass cones.

Technical Specifications

Technical features:
Carbon Dome tweeter, Continuum mid-range, Aramid Fibre/Paper bass cones.

Description:
2.5-Way In-Wall System

Drive units:
1x 25mm (1 in) Carbon Dome high-frequency
2x 100mm (4 in) Continuum cone mid/bass
2x 100mm (4 in) Aramid Fibre/Paper profile bass

Frequency range -6dB:
-6dB at 43Hz - 33kHz

Frequency Response -3dB:
45Hz - 28kHz (+/-3dB)

Sensitivity:
86dB spl (2.83Vrms, 1m)

Harmonic distortion:
2nd and 3rd harmonics (90dB, 1m)
<1% 80Hz - 33kHz
<0.5% 120Hz - 33kHz

Nominal impedance:
8ohm (minimum 4.9ohm)

Recommended amplifier power:
25W - 150W into 8ohm on unclipped program

Dimensions:
Frame height: 625mm (24.6in)
Frame width: 175mm (6.9in)
Depth behind surface: 92.5mm (3.64in)
Cut-out height: 597mm (23.5in)
Cut-out width: 147mm (5.8in)
Protrusion: 8mm (0.3in)
Net weight 6.2kg (13.73 lb)
Grille Finish: White
