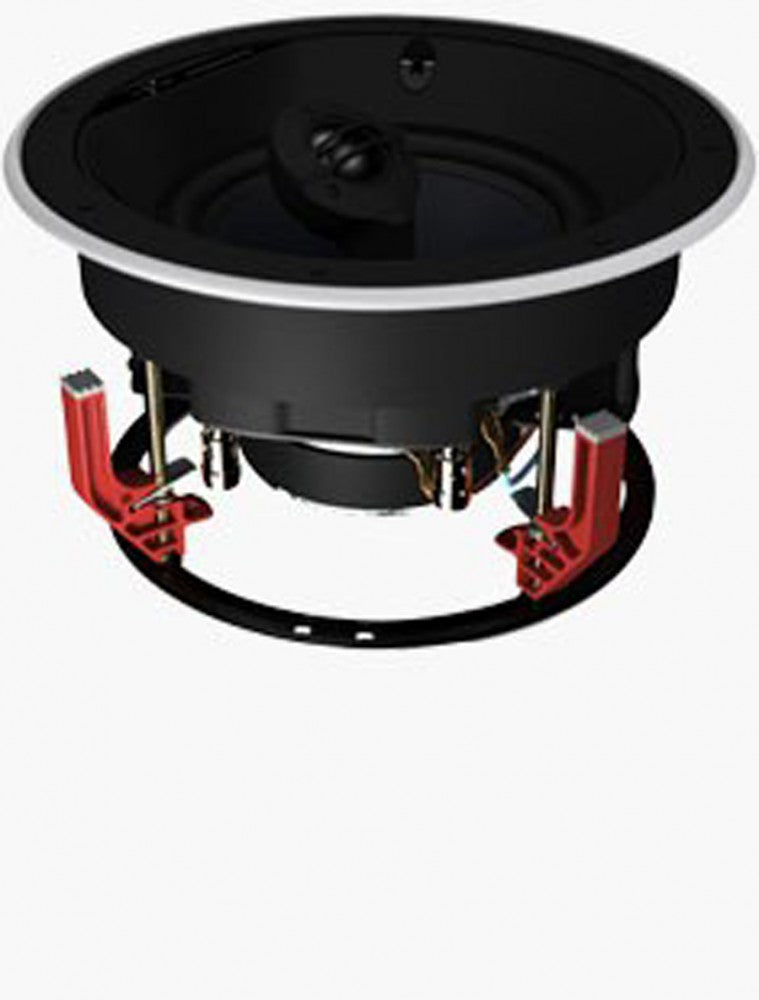

Bowers & Wilkins: CCM684 Performance In-Ceiling Speaker...

... a high performing in-ceiling speaker distinguished by its adjustable tilt offset 25mm (1in) soft dome tweeter coupled with its 200mm (8") woven glassfibre bass/midrange driver, solid bass response and smooth overall delivery.

Download File

Download 600_series_brochure.pdf
[428.7kb]

B&W CCM684 Info Sheet

B&W CCM684 Specifics:

• 1x 25mm (1") Soft Dome Tweeter.
• 1x 200mm (8") black glassfibre cone bass/midrange.
• 2-way in-ceiling system
• Frequency range: 35Hz to 35kHz
• Recommended amplifier power: 25w - 130w
• Sensitivity: 88dB
• Nominal impedance:8ohms
• Frame Diameter: 290mm
• Cutout Diameter: 250mm
• Depth Behind Surface: 133mm
• Protrusion: 4mm
• Optional Pre-mount Kit: C8
• Optional Back Box: 6C
